CASE STUDY
Custom Hot Water Batch Tank Skid Streamlines Batch Processing Operations
Privately Held Beverage Producer
Beverage & Distilled Spirits Manufacturing
Custom Skid Fabrication; Process Design & Engineering; Controls & Automation Programming; Equipment Specification & Integration
Overview
TM Process & Controls, Inc. (TMPC) delivered a turnkey hot water batch tank skid solution for a batch area at a beverage production facility in Auburndale, Florida. The system enables efficient water and dry ingredient batching, circulation, heating, and manual transfer to downstream process tanks.
Problem
The facility required a compact and automated hot water batching system to support precise temperature control for mixing processes, with integration into an existing batching workflow.
Solution

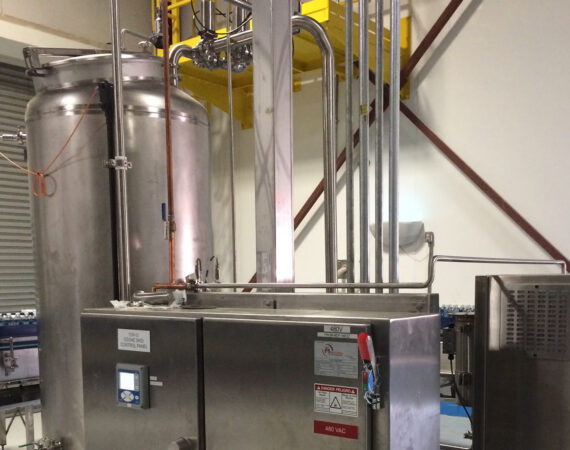

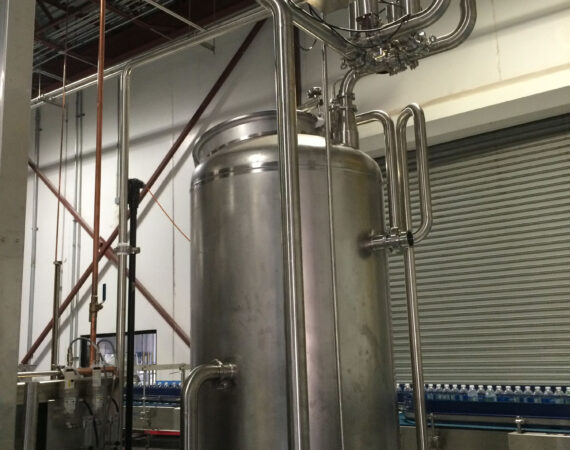

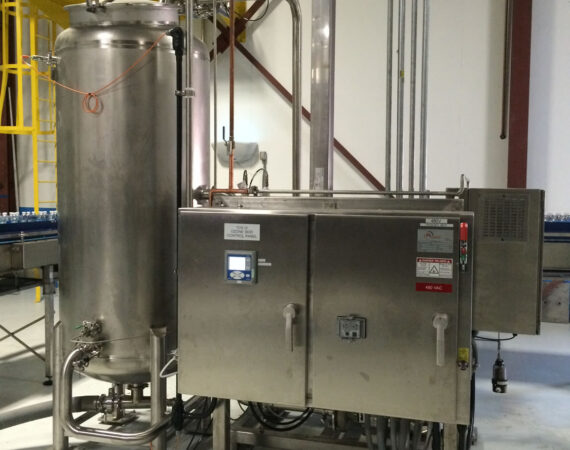

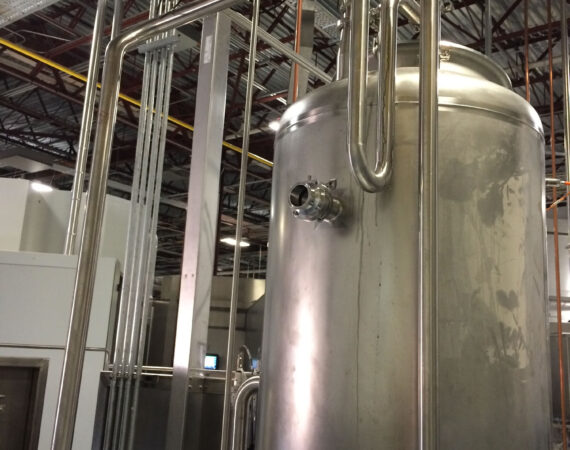

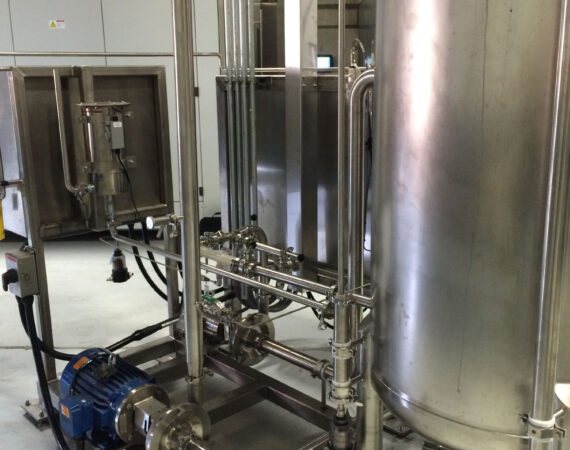

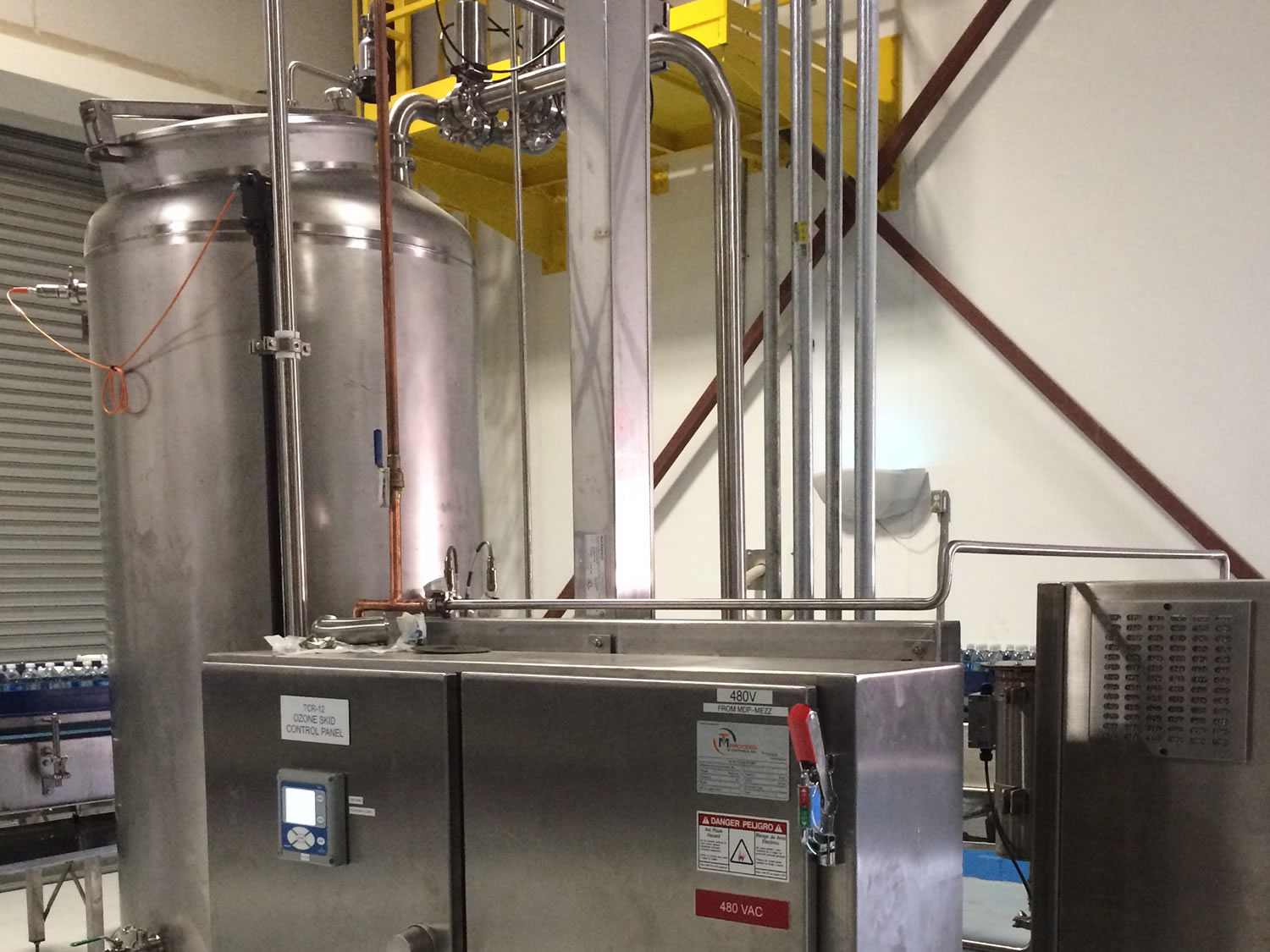

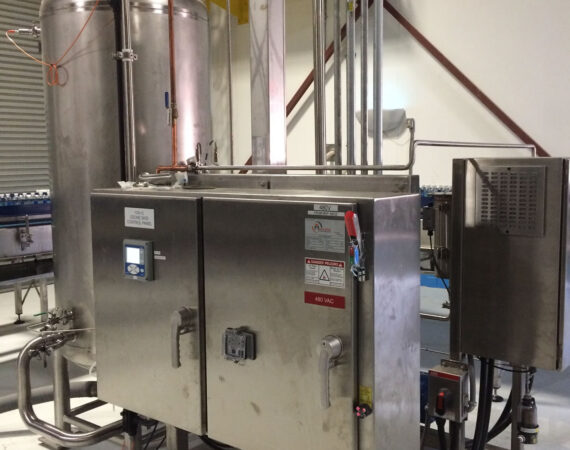

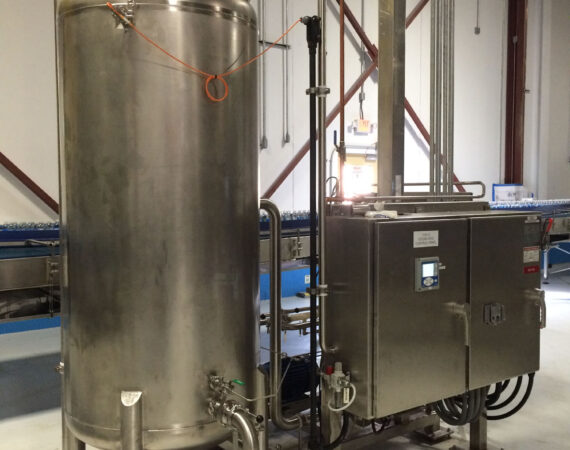

TMPC engineered and fabricated a 500-gallon insulated skid equipped with a high-shear agitator, sanitary pump, shell and tube heat exchanger, steam temperature control, and full automation via a CompactLogix PLC and PanelView HMI. The system included mass metering, RTDs, and historian compatibility for improved batch tracking.
Results
- Delivered a fully integrated and insulated batch skid with +/- 5°F temperature accuracy
- Enhanced batch processing consistency and efficiency
- Enabled manual control with scalable automation for future process integration
- Ensured safe operation in a compact footprint with sanitary construction
